Sustainability Focus: Hydrogen Fuel Cells

The urgent need for sustainable energy solutions to combat climate change has led to the development of many alternative fuel technologies. Hydrogen fuel cells are among the most promising solutions, generating electricity from hydrogen and producing only water as a direct emission. While there are still challenges to overcome, hydrogen fuel cells are already at work in a variety of real-world applications.

Understanding Hydrogen Fuel Cells

Hydrogen fuel cells are electrochemical devices that generate electricity by converting chemical energy stored in hydrogen gas. They consist of an anode, cathode, and electrolyte. At the anode, hydrogen atoms are stripped of their electrons, yielding hydrogen ions (which are simply protons). The protons move through the electrolyte membrane and then combine with electrons and atmospheric oxygen to create water molecules. The movement of protons and electrons creates an electrical current.

There are several different types of hydrogen fuel cells, each with its own unique benefits, constraints, and applications.

1. Proton exchange membrane (PEM) fuel cells are widely used in automotive applications due to their lightweight structure, high power density, and rapid startup. These fuel cells operate at low temperatures, making them a practical solution in these applications.
2. Solid oxide fuel cells (SOFCs) are primarily used for stationary power generation and other industrial applications. They operate at much higher temperatures than PEM fuel cells, nearly 1000°C. These versatile cells can operate on a range of fuels, including hydrogen and natural gas, making them well-suited for power plants and microgrid systems.
3. Alkaline fuel cells (AFCs) saw use in space missions such as NASA’s Apollo, Skylab, and Space Shuttle programs. These fuel cells are highly efficient but require incredibly pure hydrogen that carries significant production costs. Their efficiency and long-term reliability make them valuable for specialized applications.

Advantages of Hydrogen Fuel Cells

Zero-emissions operation is one of the biggest advantages of hydrogen fuel cells. Unlike fossil fuels, which release air emissions, including carbon dioxide, nitrogen oxides, and other pollutants, hydrogen fuel cells emit only water vapor during operation. This makes them a key technology in combating climate change and improving air quality.

Hydrogen fuel cells can achieve energy conversion efficiency upwards of 60%, significantly higher than internal combustion engines, which reach only 25 to 35%. They have an energy density greater than lithium-ion batteries, allowing for longer operational times. These factors make hydrogen fuel cells an excellent choice for vehicles and portable energy solutions.

Battery electric vehicles require significant extraction of critical minerals, including lithium, cobalt, manganese, and nickel. Not only are these mining operations often environmentally harmful, but many of them are based in regions where conflict, forced labor, and child labor are all ongoing problems. Electric vehicle battery recycling is also a challenge that has yet to be solved. While hydrogen infrastructure does require some critical minerals, the significant need for lithium, cobalt, and manganese can be eliminated.

The ability of hydrogen fuel cells to generate electricity efficiently in nearly any environment makes them a versatile solution for many applications. Automobiles, public transit, aviation, maritime transport, and stationary power systems are all practical applications. Hydrogen fuel cells can provide reliable and sustainable energy production for urban energy grids, data centers, and off-grid locations.

Challenges and Limitations

Similar to battery electric vehicles, there is still a prominent concern over the original energy source for hydrogen fuel cells. An overwhelming majority of hydrogen production today comes from natural gas, negating most environmental benefits. However, a transition toward green hydrogen produced via electrolysis using renewable energy could make the technology truly sustainable.

Infrastructure is another potential roadblock for hydrogen fuel cell vehicles. Gasoline stations are commonplace, and existing electrical infrastructure has allowed for the rapid development of fast-charging stations for electric vehicles. Large-scale hydrogen fuel cell vehicle adoption would require significant investment in hydrogen production facilities, pipelines, and fueling stations.

Hydrogen fuel cell manufacturing relies on costly materials, such as platinum-based catalysts, making them more expensive than battery electric vehicles or internal combustion engines. However, ongoing research aims to reduce these costs.

Real-World Hydrogen Fuel Cell Applications

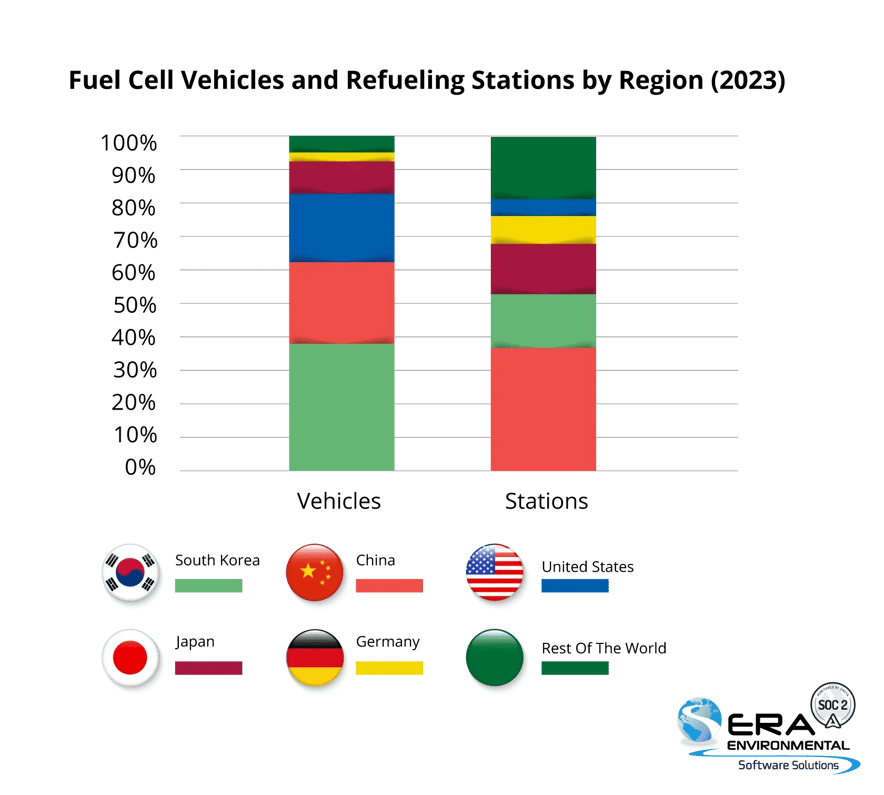

Hydrogen fuel cell passenger vehicles are already on the road today, with 2023 seeing the global stock reach 87,600. About half of the 15,400 new vehicles produced in 2023 were cars, with trucks and buses making up most of the other half. Countries with the largest fleets include Korea, China, and the United States.

At the cutting edge of fuel cell vehicle technology, models such as the Toyota Mirai and Hyundai NEXO offer ranges of 300 and 380 miles, respectively. Refueling times are under five minutes, offering a sustainable transportation solution for long-distance travel without the long waits required for electric vehicle charging.

Nearly 10% of new fuel cell vehicles on the road are buses. The reduced emissions in busy cities can make a major difference in air quality. In Germany and Japan, development is underway to replace diesel locomotives with hydrogen-powered trains that offer cleaner, more efficient alternatives.

Hydrogen fuel cells are also a promising technology for stationary power generation. Both Apple and Microsoft have data centers that rely on hydrogen fuel cells for reliable, emission-free backup power, reducing their dependence on diesel generators.

Ensuring consistent, sustainable energy for remote microgrids is a major challenge. Producing and storing hydrogen gas using electrolyzers powered by on-site solar or wind can allow hydrogen fuel cells to sustain such a microgrid. Such solutions are currently under development for the Department of Defense at the Pacific Energy Assurance Renewables Laboratory at Joint Base Pearl Harbor-Hickam.

The Road Ahead for Hydrogen Fuel Cells

Hydrogen fuel cells are a promising technology that may play a significant role in the path to decarbonization. Transportation, power generation, and industrial sectors all stand to benefit from this clean and efficient technology if current challenges to adoption can be overcome. As industries move toward cleaner energy solutions, companies must adapt to evolving regulations. ERA Environmental offers a comprehensive Environmental Management System to help businesses navigate the latest requirements and meet compliance standards.
